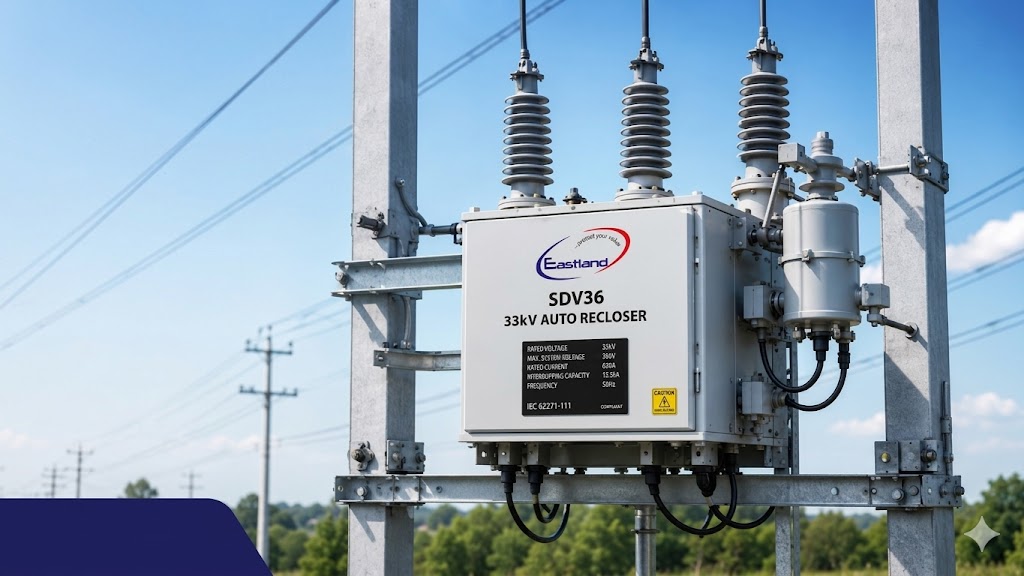

33kV Auto Recloser: Complete Guide to Working, Specifications & Applications in India (2026)
📅 June 24, 2026✍️ Eastland Switchgears Pvt. Ltd. 33kV Auto Recloser SDV36 Complete Guide
Quick Summary: A 33kV Auto Recloser is a solid-insulated, pole-mounted intelligent switchgear device rated for 33kV system voltage (36kV rated maximum per IEC). It automatically detects faults on overhead sub-transmission and distribution lines and restores power without manual intervention — making it essential for long-distance rural feeders, industrial supply lines, and renewable energy grid connections in India. This guide covers everything: working principle, technical specifications of ESPL’s SDV36, key applications, difference from 11kV, and how to choose the right unit for your project.
What is a 33kV Auto Recloser?
A 33kV Auto Recloser — also called an Automatic Circuit Recloser (ARCB) at 33kV — is a self-contained, outdoor pole-mounted switchgear device designed for overhead electricity networks operating at 33kV system voltage. Per IEC standards, equipment for 33kV systems is rated at 36kV maximum voltage — so “33kV auto recloser” and “36kV auto recloser” refer to the same product.
It combines four critical functions in a single unit:
- Vacuum circuit breaker — interrupts fault currents up to 16kA at 33kV
- Integrated protection relay — 8 programmable protection groups detect faults automatically
- Embedded current and voltage sensors — Class 0.2 metering and 5P40 protection accuracy
- SCADA communication — IEC 61850, IEC 60870-5-101/104, MODBUS, DNP3 built-in
Unlike a standard circuit breaker that trips and stays open, a 33kV auto recloser automatically recloses after a preset dead time — restoring power after transient faults without any manual intervention or truck roll.
India context: 33kV is the primary sub-transmission voltage in India — used for long-distance feeder lines from 132/33kV grid substations to 33/11kV distribution substations. Auto reclosers at this voltage level protect the backbone feeders that supply entire towns, industrial estates, and rural districts.
How Does a 33kV Auto Recloser Work?
The working principle is the same as an 11kV auto recloser, but at higher voltage and fault current levels. Here is a step-by-step breakdown:
Continuous Monitoring
Embedded current and voltage sensors continuously monitor the 33kV line. The integrated protection relay tracks current magnitude, voltage levels, frequency, and phase balance in real time — 24 hours a day, 365 days a year.
Fault Detection & Trip
When a fault is detected — overcurrent, earth fault, sensitive earth fault, voltage abnormality, or frequency deviation — the protection relay triggers the magnetic actuator. The vacuum interrupter contacts open in milliseconds, interrupting the fault current.
Dead Time
The recloser waits for a preset dead time (0.5 to 30 seconds, configurable). During this window, a transient fault — lightning strike, tree branch contact, animal contact — naturally clears from the 33kV line as the ionised arc path de-energises.
Automatic Reclose
The recloser closes automatically. If the fault has cleared, power flow resumes normally. Consumers experience only a brief voltage flicker — not a sustained outage. The reclaim timer runs, and if no further fault occurs, the recloser resets to normal service.
Repeat or Lockout
If the fault is permanent, the recloser repeats the trip-reclose sequence up to 4 times (per IEC 62271-111). After the final attempt, it locks out — remaining open until manually reset by an operator. This prevents sustained fault current from damaging equipment.
Standard Duty Cycle:
OTrip
DT1Dead time
COReclose
DT2Dead time
COReclose
DT3Dead time
COReclose
DT4Dead time
COReclose
🔒Lockout
Why 33kV matters more: At 33kV, a single fault on a feeder line can affect an entire 33/11kV substation — cutting power to tens of thousands of consumers. A 33kV auto recloser can clear most transient faults within seconds, preventing what would otherwise be a sustained wide-area outage.
Technical Specifications — ESPL SDV36 (33kV Auto Recloser)
ESPL’s SDV36 is our flagship 33kV auto recloser, manufactured in Kolkata and fully compliant with IEC 62271-100 and IEC 62271-111. Built for India’s diverse outdoor environment — from coastal humidity to extreme heat to high-altitude installations.
| Parameter | SDV36 Specification |
|---|---|
| Rated Maximum Voltage | 36 kV (System: 33 kV) |
| Rated Frequency | 50 Hz |
| Rated Continuous Current | 800 A |
| Short Circuit Withstand (3s) | 16.0 kA |
| Fault Breaking Capacity | 16.0 kA |
| Fault Making Capacity | 40.0 kA |
| Power Frequency Withstand (Dry & Wet, 60s) | 70 kV rms ¹ |
| Lightning Impulse Withstand | 170 kVp ¹ |
| Interrupting Medium | Vacuum |
| Insulation Medium | Solid Dielectric (HCEP) |
| Mechanical Endurance | 10,000 operations |
| Rated Full Load Operations | 10,000 |
| Creepage Distance | >31.5 mm/kV |
| Ambient Temperature | -10°C to +55°C |
| Humidity | 0 to 100% |
| Altitude | Up to 2200 m ² |
| IP Rating (Control Cabinet) | IP65 |
| Weight (Circuit Breaker) | 230 kg |
| Communication Protocols | IEC 61850, IEC 60870-5-101/104, MODBUS, DNP3 |
| Protection Functions | 8 programmable groups |
| Standards | IEC 62271-100, IEC 62271-111, IEC 60255, IEC 60044-7-8 |
¹ Higher rating available on request. ² For altitude above 1000 m, IEC 62271-111 correction factor applies.
SDV36 vs SDV12 — key difference: The SDV36 (33kV) has a higher fault breaking capacity (16.0 kA vs 12.5 kA), higher withstand voltages (70 kV rms vs 32 kV rms), longer creepage distance insulators, and weighs 230 kg vs 120 kg — reflecting the increased demands of 33kV network protection.
33kV vs 11kV Auto Recloser — Key Differences
A common question from engineers and procurement teams is: when do I need a 33kV recloser vs an 11kV? Here is a clear comparison:
| Parameter | 11kV Auto Recloser (SDV12) | 33kV Auto Recloser (SDV36) |
|---|---|---|
| System Voltage | 11 kV | 33 kV |
| Rated Max Voltage (IEC) | 12 kV | 36 kV |
| Fault Breaking Capacity | 12.5 kA | 16.0 kA |
| Lightning Impulse Withstand | 85 kVp | 170 kVp |
| Power Freq. Withstand | 32 kV rms | 70 kV rms |
| Weight | 120 kg | 230 kg |
| Creepage Insulators | Shorter — 11kV rated | Longer — 33kV rated |
| Typical Application | Distribution feeder (33/11kV substation outgoing) | Sub-transmission feeder (132/33kV substation outgoing) |
| Network Scale | Protects individual 11kV feeders | Protects backbone 33kV lines supplying whole substations |
| Cost | Lower | Higher — higher-rated components |
Simple rule: If your network operates at 33kV (feeding 33/11kV substations), you need a 33kV auto recloser. If your network operates at 11kV (feeding distribution transformers), you need an 11kV auto recloser. Never use an 11kV unit on a 33kV line — it will not withstand the voltage and will fail catastrophically.
Key Applications of 33kV Auto Recloser in India
⚡ 132/33kV Substation Outgoing Feeders
The most common application. Auto reclosers on 33kV outgoing feeders protect each feeder independently — a fault on one feeder does not affect others connected to the same 132/33kV substation.
🌾 Long Rural 33kV Feeders
Rural 33kV lines covering 50–200 km are highly prone to transient faults from lightning and vegetation. A 33kV auto recloser clears 80–90% of these faults automatically — no truck roll needed.
🏭 Large Industrial Supply Lines
Steel plants, cement factories, chemical complexes, and mining operations typically receive power at 33kV. Auto reclosers protect these incoming lines — minimising production-loss downtime from transient faults.
☀️ Renewable Energy Grid Connection
Solar farms (50MW+) and wind farms connect to the grid at 33kV. Auto reclosers at these grid connection points protect both the generation assets and the utility grid from fault propagation.
🏙️ Urban Sub-Transmission Networks
In large cities, 33kV ring mains supply multiple 33/11kV substations. Auto reclosers with directional protection (SDV36-D) maintain supply continuity when a fault occurs on any section of the ring.
⛏️ Mining & Oil Field Power Supply
Remote mining operations and oil field power supply at 33kV require high reliability and minimal maintenance. The SDV36’s maintenance-free magnetic actuator and IP65 cabinet are ideal for these harsh, unmanned locations.
Protection Functions of 33kV Auto Recloser
ESPL’s SDV36 includes 8 fully programmable protection groups — all the protection functions required for 33kV sub-transmission protection in Indian utility and industrial networks.
- Over Current & Earth Fault (OCR/EF): 4-stage operation with IEC (Normal, Very, Extremely Inverse) and IEEE curves. Follower or standard DTL protection.
- Sensitive Earth Fault (SEF): Detects very low fault currents in high-resistance grounded 33kV systems — especially important for cable networks.
- Directional Protection: Essential for ring mains and meshed 33kV networks where fault current can flow in either direction.
- Fault Locator: Impedance-based calculation of fault distance — invaluable for long rural 33kV feeders to direct field crews efficiently.
- Negative Phase Sequence (NPS): Detects phase-to-phase faults and unbalanced conditions that single-phase OCR may miss.
- Under/Over Voltage Protection: Protects against voltage excursions — critical for renewable energy grid connections where voltage can fluctuate.
- Under/Over Frequency Protection: Essential for 33kV feeders supplying generation assets and industrial consumers with rotating machinery.
- Thermal Overload: Protects cables and overhead conductors from sustained thermal damage due to overload conditions.
- Auto Reclose (up to 4 shots): Fully configurable dead times, reclaim times, and trip sequence for each reclose attempt.
- Broken Conductor / Phase Unbalance: Detects open-phase conditions and unbalanced three-phase currents.
- Cold Load Pickup: Prevents unnecessary tripping after a planned outage when load rushes back simultaneously.
Communication & SCADA Integration
Modern 33kV networks require seamless SCADA integration. ESPL’s SDV36 supports all major communication protocols used by Indian utilities and industrial SCADA systems:
SDV36-SIEC 103
MODBUS
DNP3
SDV36-RAbove +
IEC 101/104
SDV36-TAbove +
IEC 61850
- Universal Serial Bus (USB): Local configuration and commissioning via laptop
- RS-485 Rear Port: Serial SCADA communication and RTU integration
- Ethernet Port: High-speed network communication and remote access
- IEC 60870-5-101/104: Standard for most Indian DISCOM and utility SCADA platforms
- IEC 61850: Required for advanced Distribution Automation and modern smart grid projects
- MODBUS & DNP3: Industrial automation and legacy SCADA systems
Optional: 4G Modem — For 33kV feeders in remote locations without local SCADA coverage, ESPL offers an optional 4G modem that enables remote monitoring and control directly over cellular — without needing a dedicated SCADA infrastructure at site.
8How to Choose the Right 33kV Auto Recloser
Use this checklist when specifying a 33kV auto recloser for your project:
1
Confirm system voltage and IEC rating
For a 33kV system, select equipment rated at 36kV maximum voltage per IEC 62271-111. Never use 27kV-rated (American standard) equipment on Indian 33kV networks.
2
Calculate maximum fault current
Determine the maximum prospective short-circuit current at the installation point. SDV36 is rated 16.0 kA — verify this exceeds your network’s maximum fault level with adequate margin (10–20%).
3
Select protection type
SDV36-N (Non-directional) for radial 33kV feeders. SDV36-D (Directional) for ring mains and meshed 33kV networks. SDV36-L (Loop automation) for advanced feeder automation schemes.
4
Select communication protocol
Check your SCADA/DMS platform protocol requirement. For RDSS and modern DA projects, specify SDV36-T (IEC 61850). For existing legacy SCADA, SDV36-R (IEC 101/104) typically suffices.
5
Verify IEC type test certificate
Confirm the supplier has a valid IEC 62271-111 type test certificate from an accredited testing laboratory. This is mandatory for utility tenders and ensures the equipment genuinely performs to specification.
6
Confirm mounting and environmental rating
SDV36 is available in single-pole and double-pole mounting. Cabinet IP65 rating for outdoor installation. Confirm altitude correction if above 1000 m — IEC 62271-111 derating applies above this altitude.
Need a 33kV Auto Recloser for Your Project?
ESPL’s SDV36 is Made in India, IEC 62271-111 certified, and trusted by utilities and industries across India and internationally. Our technical sales team will provide a detailed, itemised quotation within 24 hours.
Salessales@esplindia.in
Phone+91-9811586338
Support+91-8420810036
Request a Quote → View SDV36 →
Frequently Asked Questions?
What is the difference between a 33kV and 36kV auto recloser?
They are the same product. Per IEC standards, equipment for 33kV system voltage is rated at 36kV maximum voltage — to allow for overvoltages. “33kV auto recloser” and “36kV auto recloser” are used interchangeably in India. Always specify the IEC-rated maximum voltage (36kV), not just the system voltage.
When do I need a 33kV auto recloser instead of an 11kV?
Use a 33kV auto recloser when your feeder line operates at 33kV — typically outgoing feeders from 132/33kV grid substations, long-distance rural 33kV lines, industrial incoming supply at 33kV, or renewable energy grid connections at 33kV. Never use an 11kV auto recloser on a 33kV network.
What is the fault breaking capacity of ESPL’s 33kV auto recloser?
ESPL’s SDV36 is rated at 16.0 kA fault breaking capacity — suitable for the vast majority of Indian 33kV distribution and sub-transmission networks. Higher ratings are available on request for networks with unusually high fault levels near large generation sources.
Is a 33kV auto recloser suitable for renewable energy grid connections?
Yes. ESPL’s SDV36 is well-suited for solar farm and wind energy grid connections at 33kV. It includes Under/Over Voltage, Under/Over Frequency, and Negative Phase Sequence protection — all essential for renewable energy interconnection. IEC 61850 communication enables seamless integration with modern energy management systems.
How many reclose attempts does the SDV36 make before lockout?
Per IEC 62271-111, up to 4 reclose attempts (5 trips total) before lockout. ESPL’s SDV36 supports all 4 attempts with individually configurable dead times (DT1 to DT4) and reclose timing. Each trip can be set as instantaneous (fast) or delayed.
Does the 33kV auto recloser require maintenance?
No. ESPL’s SDV36 uses maintenance-free magnetic actuator technology. No lubrication, no scheduled mechanical maintenance, rated for 10,000 full-load operations without servicing — ideal for remote or unmanned 33kV installations in rural or industrial areas.
What is the weight of ESPL’s 33kV auto recloser?
ESPL’s SDV36 circuit breaker weighs approximately 230 kg. This is heavier than the SDV12 (11kV, 120 kg) due to the larger vacuum interrupters, longer insulators, and more robust construction required for 33kV service. Double-pole mounting is recommended for structural stability.
Is ESPL’s 33kV auto recloser eligible for DISCOM and RDSS tenders?
Yes. ESPL’s SDV36 is Made in India, IEC 62271-111 type-tested, and fully compliant with DISCOM tender specifications. It supports IEC 61850 as required by RDSS distribution automation tender documents, and qualifies under Make in India procurement guidelines.
★Conclusion
A 33kV Auto Recloser is one of the most critical protection devices in India’s sub-transmission and high-voltage distribution network. At 33kV, a single feeder fault can affect entire towns and industrial areas — which is why intelligent, automatic fault clearance at this voltage level is not optional, it is essential.
ESPL’s SDV36 delivers proven vacuum interruption at 16.0 kA, maintenance-free magnetic actuator technology, embedded Class 0.2 sensors, 8-group protection, IEC 61850 communication, and IP65 outdoor protection — all from a Make in India manufacturer in Kolkata with over 40 years of industry experience.
Whether you are protecting a long rural 33kV feeder, a large industrial supply line, a renewable energy grid connection, or a 132/33kV substation outgoing feeder — ESPL’s SDV36 is the reliable, certified, locally-supported choice.
Talk to Our 33kV Auto Recloser Experts
Tell us your voltage rating, fault current level, communication requirement, and project location — and our technical team will respond with a detailed quotation within 24 hours.
